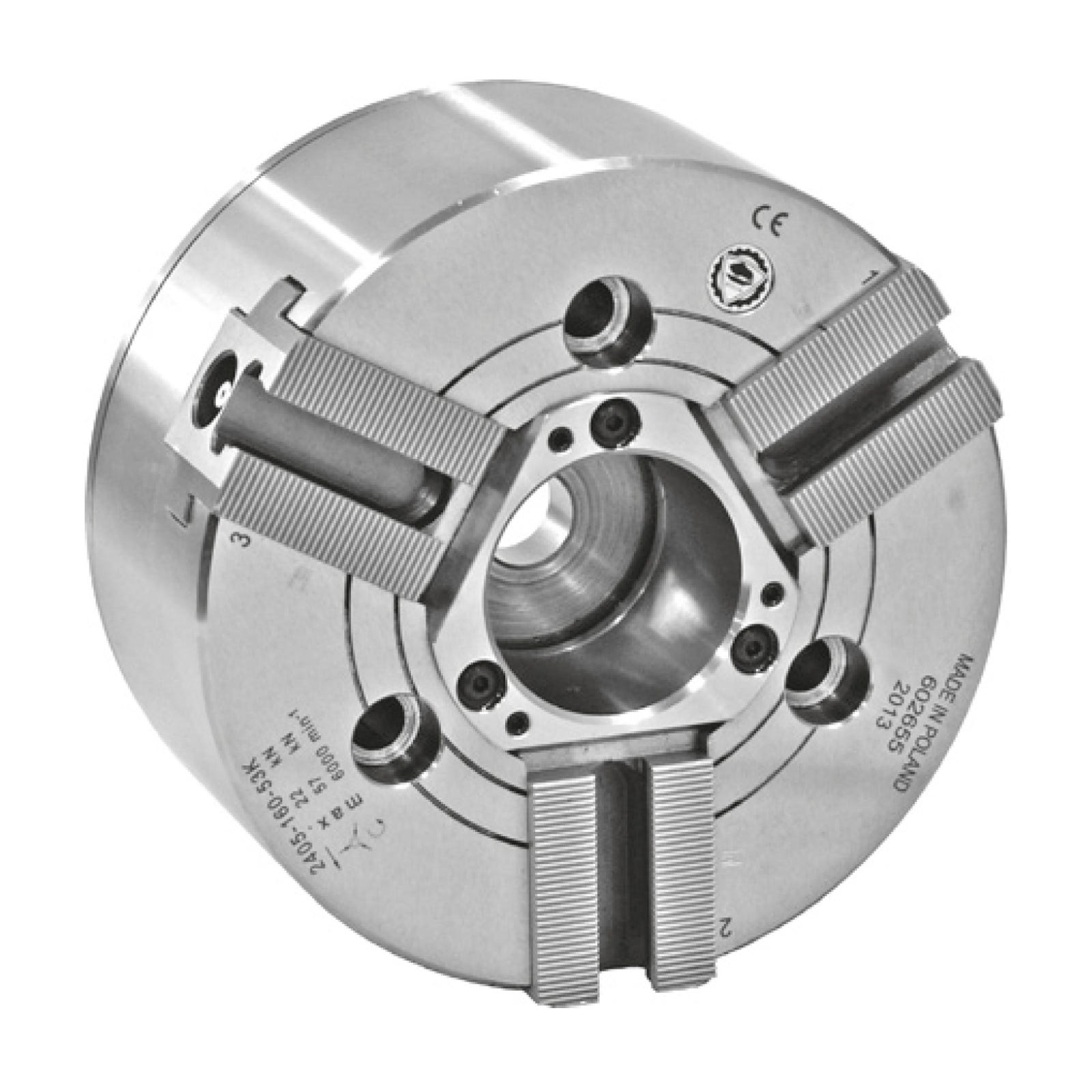

200mm / 8" 3 Jaw Large Through Hole Power Chuck - 2405-K-ZW-SGM Series (Bison)
200mm / 8" 3 Jaw Large Through Hole Power Chuck - 2405-K-ZW-SGM Series (Bison)
| Diameter (mm) | 200 |
|---|
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Large Through Hole (Open Centre) Power Chuck
- 3 Jaw Chuck
- Front Mount
- Supplied with 1 Set of Soft Top Jaws
- Suitable for use with Kitagawa BB200 type jaws
- 60° Serration
- Hydraulic clamping system
- For quicker and more consistent clamping of the workpiece compared to manual/scroll chucks
- Large through hole allows clamp larger workpieces to be clamped further into the chuck for extra strong clamping at high speeds.
- Manufactured from high grade alloy steel for higher rigidity and wear resistance
- Hardened and ground working surfaces for maintained accuracy and repeatability
- Made by Bison Bial
- All Adaptor plates and draw tube connectors can also be supplied depending on machine specification.
Specification
| Category | Workholding |
|---|---|
| Sub Category | CNC Power Chucks & Jaws |
| Sub Category 2 | Power Chucks |
| Diameter (mm) | 200 |
| Diameter (Inch) | 8" |
| H | 16.5 |
| Max RPM | 5000 |
| B | 95 |
| Weight | 21 (without jaws) |
| b | 43.5-48.5 |
| E | 6 |
| F | 133.4 |
| G | 3xM12 |
| T | 3 |
| J | 20 |
| K | 86 |
| M | 22.5 (16/-6.5) |
| O | 20.5 |
| P | 66 |
| R | 98 |
| S | 2.6 |
| U | -8 (min) / 14.5 (max) |
| f | 58.5 |
| e | 25 |
| Jaw Stroke | 5 |
| Jaws Included | 1 Set of Soft Top Jaws |
| Moment of Inertia | 0.15 |
| Max Pull Force | 34 |
| c | 10.5-29 |
| d | M12 |
| g | 14 |
| h | 40 |
| Type | Standard |
| Jaw Type | 2 Piece |
| No. of Jaws | 3 |
| Serration Pitch | 1.5x60° |
| Body Type | Large Through Hole |
| Brand | Bison |
