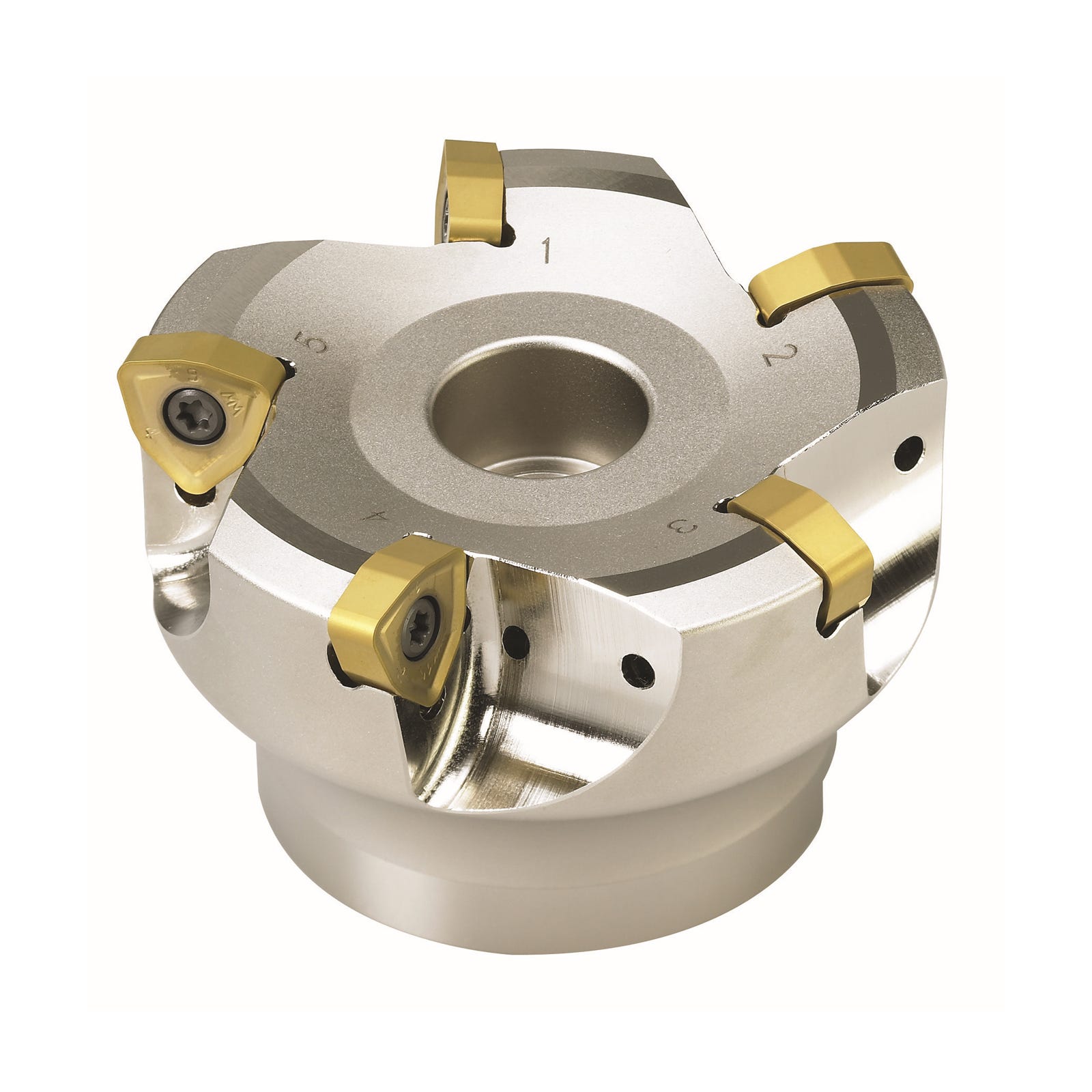

80mm HRM Double High Feed Face Mill for WNMX09 Inserts - HRMD-FM (Korloy)
80mm HRM Double High Feed Face Mill for WNMX09 Inserts - HRMD-FM (Korloy)
| Diameter (mm) | 80 |
|---|---|
| Overall Length (mm) | 50 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
Specification
| Diameter (mm) | 80 |
|---|---|
| Overall Length (mm) | 50 |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Exotics |
| Performance | 5 |
| Brand | Korloy |
| Insert Series | WNMX |
| Application | Face Milling, Copy Milling, Slotting, Shoulder Milling, Ramping, Helical Cutting |
| Inserts | WNMX09 |
| Weight | 1.1kg |

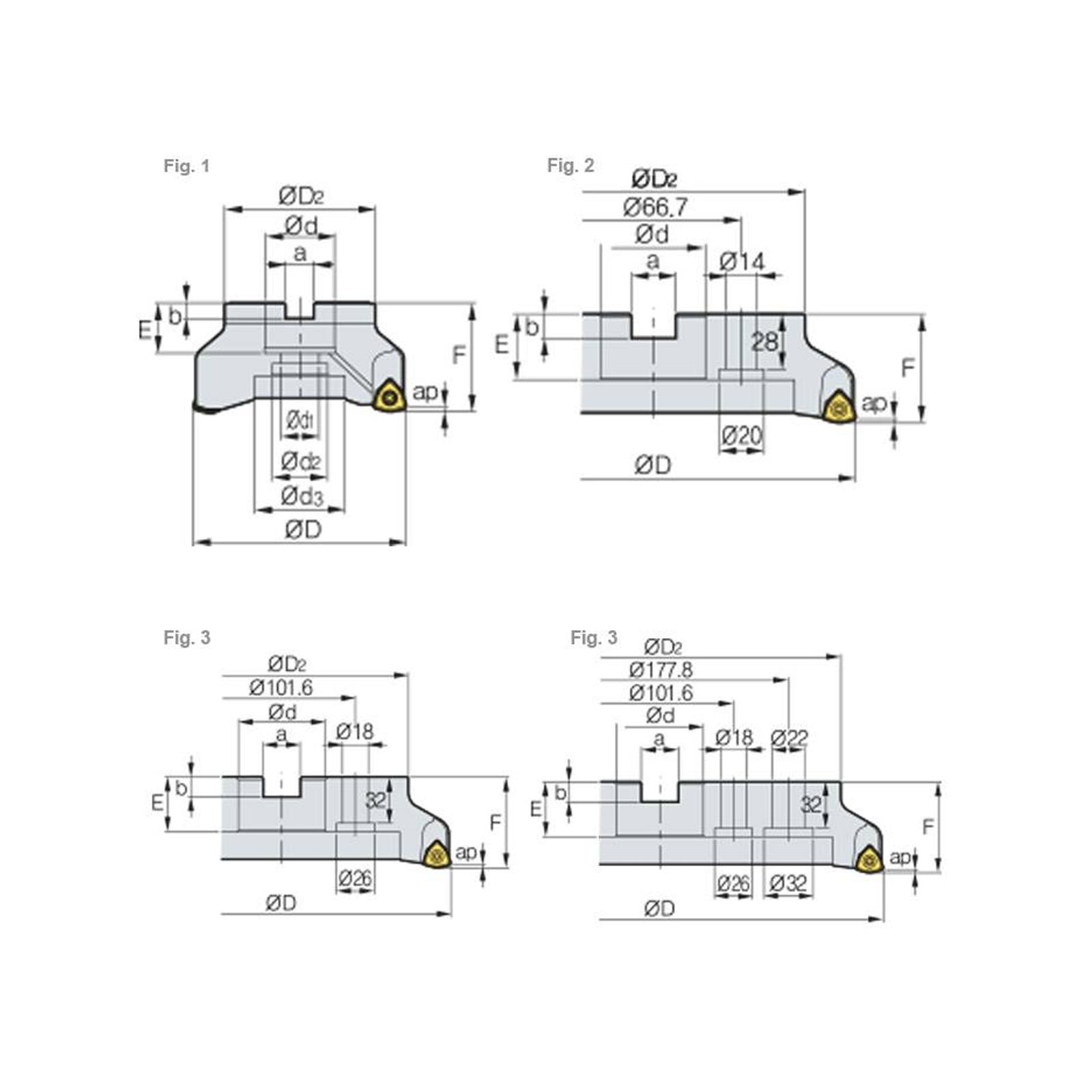

| Ød1 | 14 |
| Ød2 | 20 |
| ØD2 | 57 |
| a | 12.4 |
| b | 7 |
| E | 23 |
| Screw | FTKA0307 |
| Wrench | TW09S |
| Holder Type | Face Mill |
| Insert Angle | 90° |
| Holder Material | Steel |
| Spigot (mm) | 27 |
| Teeth | 7 |
| Depth of Cut | 1.5 |
