HRM Double High Feed Face Mill for WNMX Inserts - HRMD-FM (Korloy)

(HRMD-FM) Performance

Starting at £230.08 £191.73

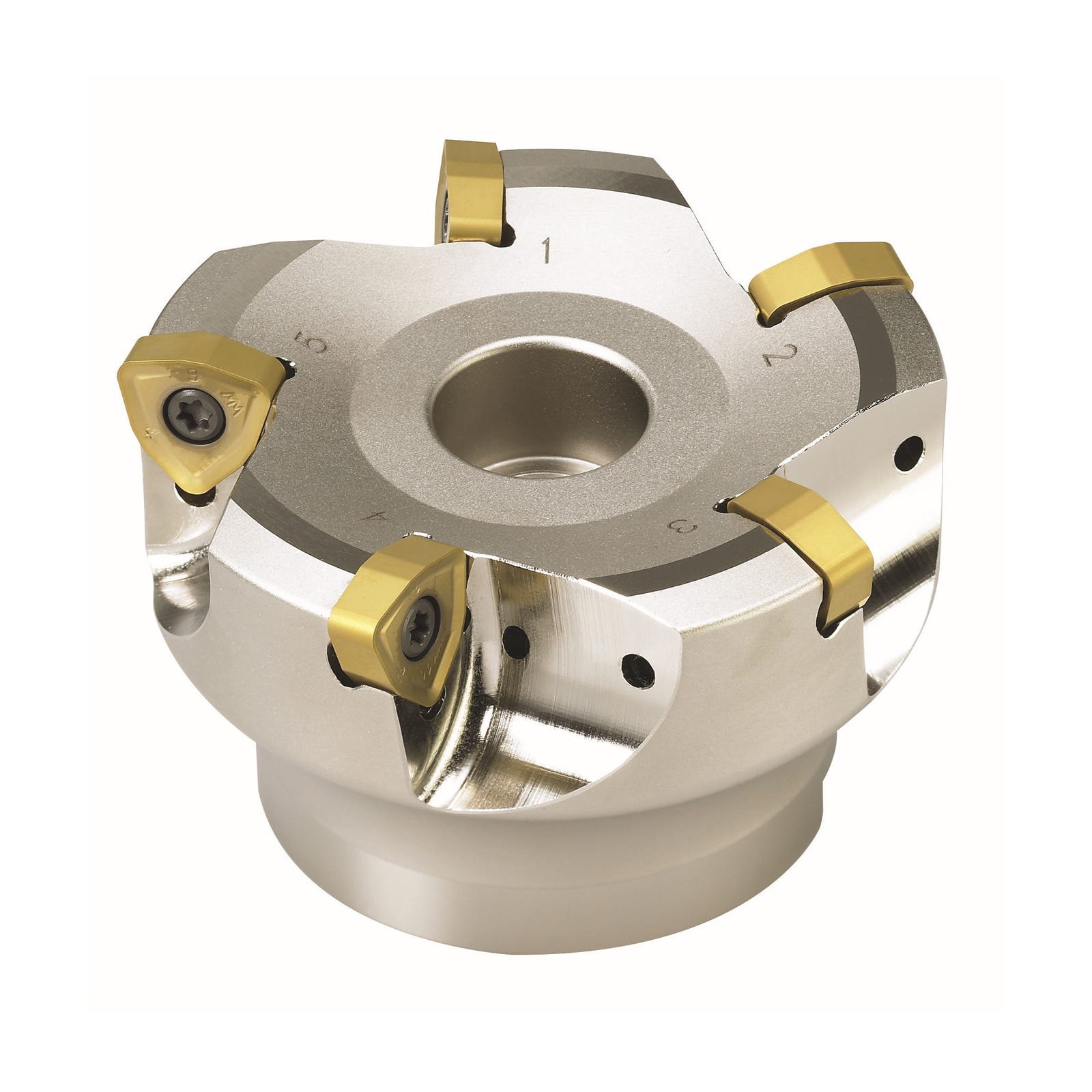

The Korloy HRMD-FM series HRM Double is a high feed face mill style milling body that takes WNMX inserts. Diameters range from 16-40mm and these are suitable for copy milling, ramping, slotting, shoulder milling, face milling and helical cutting. The HRM Double offers high feed machining of stainless steel, exotics, cast iron steels and hardened steels
  • P
  • H
  • M
  • S
  • K
View Products
ØD (Diameter) Ød (Shank) Ød (Spigot) Thread ℓ (Reach) L (Length) F (Length) Z (Teeth) AP (Depth of Cut) Inserts Figure Inserts Spares Stock Price (ex VAT) Qty Action
40 16 40 3 1.5 1
In Stock
£230.08 £191.73

ØD (Diameter) 40
Ød (Spigot) 16
F (Length) 40
Z (Teeth) 3
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09040HR-3
More Information
40 16 40 4 1.5 1
In Stock
£291.19 £242.66

ØD (Diameter) 40
Ød (Spigot) 16
F (Length) 40
Z (Teeth) 4
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09040HR-4
More Information
50 22 40 4 1.5 1
Approx. 4 days. Subject to availability
£299.42 £249.52

ØD (Diameter) 50
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 4
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09050HR-4
More Information
50 22 40 5 1.5 1
In Stock
£384.30 £320.25

ØD (Diameter) 50
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 5
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09050HR-5
More Information
63 22 40 5 1.5 1
Approx. 4 days. Subject to availability
£392.54 £327.12

ØD (Diameter) 63
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 5
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09063HR-5
More Information
63 22 40 6 1.5 1
Approx. 4 days. Subject to availability
£443.45 £369.54

ØD (Diameter) 63
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 6
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09063HR-6
More Information
80 27 50 6 1.5 1
Approx. 4 days. Subject to availability
£455.59 £379.66

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 6
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09080HR-6
More Information
80 27 50 7 1.5 1
Approx. 4 days. Subject to availability
£506.50 £422.08

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 7
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09080HR-7
More Information
100 32 50 7 1.5 1
In Stock
£518.62 £432.18

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 7
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09100HR-7
More Information
100 32 50 8 1.5 1
Approx. 4 days. Subject to availability
£569.52 £474.60

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 8
AP (Depth of Cut) 1.5
Figure 1
- +
HRMDCM09100HR-8
More Information
50 22 40 3 2 1
Approx. 4 days. Subject to availability
£287.83 £239.86

ØD (Diameter) 50
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 3
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13050HR-3
More Information
50 22 40 4 2 1
In Stock
£360.88 £300.73

ØD (Diameter) 50
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 4
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13050HR-4
More Information
63 22 40 4 2 1
In Stock
£370.43 £308.69

ØD (Diameter) 63
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 4
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13063HR-4
More Information
63 22 40 5 2 1
In Stock
£463.03 £385.86

ØD (Diameter) 63
Ød (Spigot) 22
F (Length) 40
Z (Teeth) 5
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13063HR-5
More Information
80 27 50 5 2 1
In Stock
£471.29 £392.74

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 5
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13080HR-5
More Information
80 27 50 6 2 1
In Stock
£510.26 £425.22

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 6
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13080HR-6
More Information
100 32 50 6 2 1
In Stock
£510.26 £425.22

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 6
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13100HR-6
More Information
100 32 50 7 2 1
Approx. 4 days. Subject to availability
£586.81 £489.01

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 7
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13100HR-7
More Information
125 40 63 7 2 1
In Stock
£600.84 £500.70

ØD (Diameter) 125
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 7
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13125HR-7
More Information
125 40 63 8 2 1
In Stock
£674.81 £562.34

ØD (Diameter) 125
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 8
AP (Depth of Cut) 2
Figure 1
- +
HRMDCM13125HR-8
More Information
80 27 50 4 2.5 1
Approx. 4 days. Subject to availability
£453.18 £377.65

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 4
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16080HR-4
More Information
80 27 50 5 2.5 1
In Stock
£490.63 £408.86

ØD (Diameter) 80
Ød (Spigot) 27
F (Length) 50
Z (Teeth) 5
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16080HR-5
More Information
100 32 50 5 2.5 1
In Stock
£490.63 £408.86

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 5
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16100HR-5
More Information
100 32 50 6 2.5 1
In Stock
£564.22 £470.18

ØD (Diameter) 100
Ød (Spigot) 32
F (Length) 50
Z (Teeth) 6
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16100HR-6
More Information
125 40 63 6 2.5 1
Approx. 4 days. Subject to availability
£577.74 £481.45

ØD (Diameter) 125
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 6
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16125HR-6
More Information
125 40 63 7 2.5 1
Approx. 4 days. Subject to availability
£648.86 £540.72

ØD (Diameter) 125
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 7
AP (Depth of Cut) 2.5
Figure 1
- +
HRMDCM16125HR-7
More Information
160 40 63 7 2.5 2
Approx. 4 days. Subject to availability
£726.73 £605.61

ØD (Diameter) 160
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 7
AP (Depth of Cut) 2.5
Figure 2
- +
HRMDCM16160R-7
More Information
160 40 63 8 2.5 2
Approx. 4 days. Subject to availability
£763.07 £635.89

ØD (Diameter) 160
Ød (Spigot) 40
F (Length) 63
Z (Teeth) 8
AP (Depth of Cut) 2.5
Figure 2
- +
HRMDCM16160R-8
More Information
200 60 63 8 2.5 3
Approx. 4 days. Subject to availability
£900.42 £750.35

ØD (Diameter) 200
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 8
AP (Depth of Cut) 2.5
Figure 3
- +
HRMDCM16200R-8
More Information
200 60 63 10 2.5 3
Approx. 4 days. Subject to availability
£972.47 £810.39

ØD (Diameter) 200
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 10
AP (Depth of Cut) 2.5
Figure 3
- +
HRMDCM16200R-10
More Information
250 60 63 10 2.5 3
Approx. 4 days. Subject to availability
£1,166.96 £972.47

ØD (Diameter) 250
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 10
AP (Depth of Cut) 2.5
Figure 3
- +
HRMDCM16250R-10
More Information
250 60 63 12 2.5 3
Approx. 4 days. Subject to availability
£1,248.64 £1,040.53

ØD (Diameter) 250
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 12
AP (Depth of Cut) 2.5
Figure 3
- +
HRMDCM16250R-12
More Information
315 60 63 12 2.5 4
Approx. 4 days. Subject to availability
£1,560.78 £1,300.65

ØD (Diameter) 315
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 12
AP (Depth of Cut) 2.5
Figure 4
- +
HRMDCM16315R-12
More Information
315 60 63 14 2.5 4
Approx. 4 days. Subject to availability
£1,670.05 £1,391.71

ØD (Diameter) 315
Ød (Spigot) 60
F (Length) 63
Z (Teeth) 14
AP (Depth of Cut) 2.5
Figure 4
- +
HRMDCM16315R-14
More Information
Features & Benefits
  • Double sided inserts with 6 cutting edges
  • Ultra high metal removal rates
  • WNMX09, WNMX13 & WNMX16 insert sizes
  • For high performance machining of stainless steel, exotics, cast iron, steels and hardened steels <HRc60
  • Double sided insert gives 6 usable cutting edges
  • High rake angle cutting edge and chip breaker reduces cutting load
  • Negative geometry designed for high rigidity of cutting edge
  • Simple screw on system & stable support gives strong clamping force
Specification
Specification
Insert Type LNGX
Approach Angle 90°
Tool Holder Type Face Mill
Application Copy Milling, Face Milling, Helical Cutting, Ramping, Shoulder Milling, Slotting
Applicable Materials Cast Iron, Exotics, Hardened Steel, Stainless Steel, Steel
Performance 5
Product Range HRM Double High Feed Indexable Milling System
Clamp Type Screw
Tool Holder Material Steel
Brand Korloy
Cutwel Sku HRMD-FM
